Oil level gauge

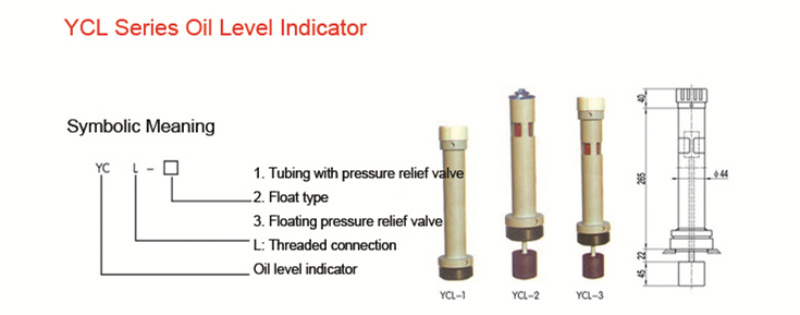

The oil level gauge is suitable for sealed transformers, instead of oil pillows, indicate oil level clearly, which helps the transformers operating more safety. The series of YCL oil level gauges are made by glass,less steel pipe, aluminium alloy tube.

Commodity name： Oil level gauge
Commodity ID： PC-00100

Related Products

Product Description

The oil level gauge is suitable for sealed transformers, instead of oil pillows, indicate oil level clearly, which helps the transformers operating more safety. The series of YCL oil level gauges are made by glass,less steel pipe, aluminium alloy tube.

When the oil level indicator window is blue, the oil level is normal, the red shows the oil level is coming down.

Application :

The visual Fluid Level Indicators are used for monitoring fluid levels and temperature in various types of reservoirs. Typical applications are hydraulic system reservoirs and lubricating, cutting and cooling fluid tanks. Visual Fluid Level Indicators are suitable for service in mineral oils and phosphate-ester based hydraulic fluids. For Water Glycols and High Water based fluids, the sight tube must be ordered in glass construction. Fluid Level Indicators can be supplied with thermometers.

Features :

·Attractive appearance

·Transparent sight tube

·Thermometers furnished with dual range for both Celsius and Fahrenheit

·Simple and rugged construction

·Available in several sizes

·Choice of seals

·Easy mounting

We have verities of Oil - Level Indicators that includes.

·Face Type Oil - Level Indicator

·TP Knob Type Oil - Level Indicator

·Aluminum Knob Type Oil - Level Indicator
Material

Steel
Usage/Application

Industrial
Color

Silver
APPLICATION :

This indicator is suitable for oil filled Power Transformers & oil filled tanks.

SCOPE :

Indicator continuously reads level inside the conservator and operates a microswitch when oil level drops near Empty level mark.

CONSTRUCTION & WORKING :

The indicator has aluminium body with built in flange for mounting. To avoid leakage of oil and to avoid entry of contaminated air into tank, a pair of permanent magnets is used separated by a metallic wall (See Schematic). A float is used as sensor & is connected to driving magnet immersed in oil. The driven magnet is positioned outside in body which carries a pointer and a cam. The pointer is set to read the oil level and the cam is set to operate the switch near Empty level. Switch resets automatically when level of oil is brought to normal. Contacts of switch are brought outside in terminal box with threaded hole for fixing cable gland. The body of indicator with dial and switch is sealed to avoid entry of moist air. Hence switch is not accessible for resetting or servicing. The length of Float - Arm can be adjusted by Screw (Item 3, Fig.3).
